Aiqeer 5 Pin Car Relay, 12V 40A SPDT Automotive Relay with Harness Socket and Pre-Wired (Black)

Brand: Aiqeer

Features:

• The relay comes with a harness socket and color-labeled pre-wired. The wire harness socket has a unique male and female groove structure design on the edge, which can connect all relays together. Pre-wired with 5 different color-coded 14/16 AWG wires for easy connection of loads and accessories.
• Comes with free metal mounting bracket for easy installation and fixing.
• The relay has high contact voltage, large coil capacity and high sensitivity, and can easily handle high current applications.
• Suitable for all vehicles and devices equipped with 12V DC power ssupply. Widely used for car lights, Indicator light, fog lamps, wiper, central locking, alarm, electric windows, etc.
• 100% Satisfaction Guaranteed! If you have any questions about the products you ordered, please contact us in time, we will try our best to provide you with satisfactory service. We always care about customer experience and strive to improve the product features and details.

Part Number: A2072

Details: Specifications:
▶Material: Plastic + Metal + Copper

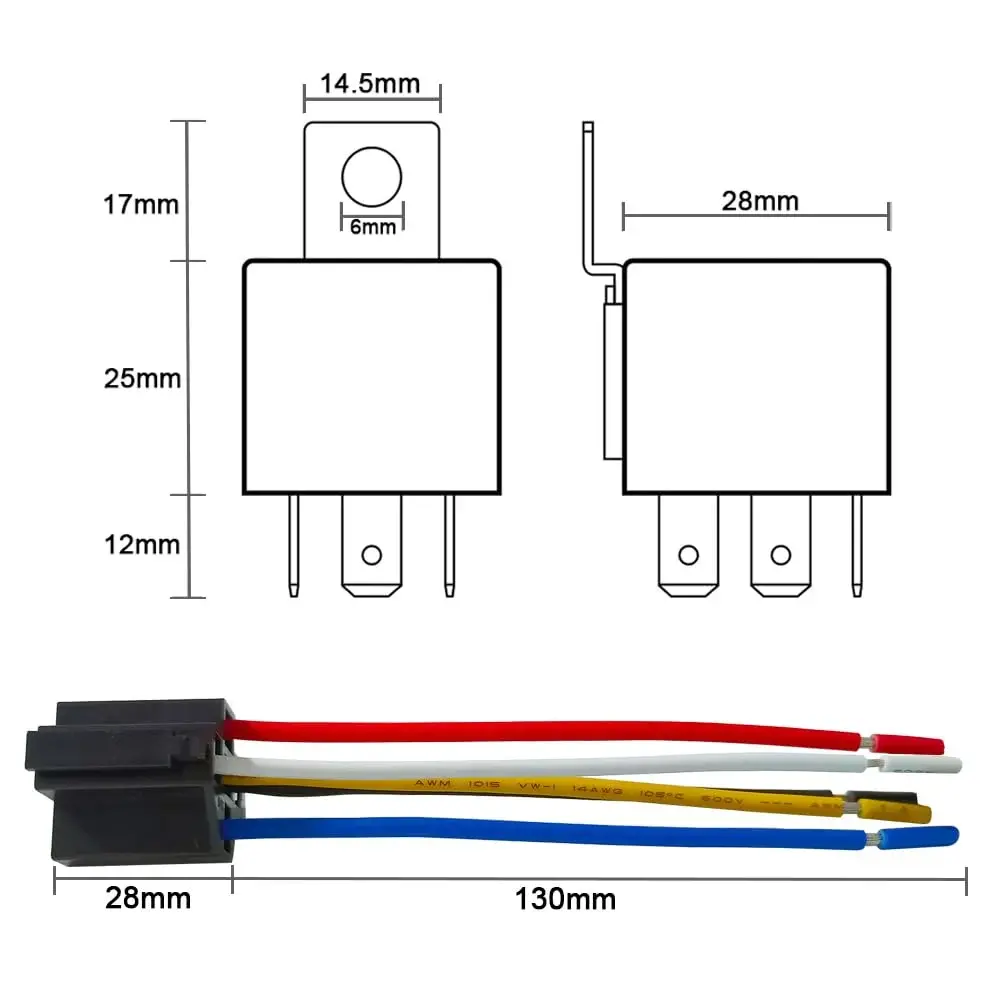

▶Size: (L*W*H)
Relay Size: 3.1 X 2.7 X 3.7 cm
Socket Size: 3.2 X 2.7 X 2.8 cm
Pre-Wired Length: 13 cm
Pre-Wired Gauge: 14/16 AWG
Fixing Hole Diameter: 0.6 cm
▶Weight: 60 g
▶Color: Black
▶Package Includes:
5 Pin Car Relay X 1 Piece
Pre-wired Socket X 1 Piece
Metal Mounting Bracket X 1 Piece

The automotive relay is an electronic control device, usually used in an automatic control circuit.
It is in fact an "automatic switch" that controls a large current through a small current.
It has the function of automatic adjustment, safety protection, and conversion circuit.

Product Parameters:
▶Contact Material: Ag Alloy
▶Contact Ratings: 12VDC / 40A
▶Contact Resistance: ≤ 50mΩ
▶Insulation Resistance: ≥ 100mΩ / 500VDC
▶Coil Power: 1.8W
▶Electrical Life: More than 100,000 Operations
▶Mechanical Life: More than 10,000,000 Operations
▶Minimum operating voltage 8V, corresponding minimum operating current is 100mA.
▶Standard operating voltage 12V, corresponding standard operating current is 150mA.
▶Temperature Range: 0°C～85°C

Package Dimensions: 6.4 x 2.5 x 1.1 inches
